Probably everyone knows the Windows Sysinternals tool BgInfo (currently version 4.27). For those who don’t, it’s a great free tool from Microsoft which captures system information form a workstation or server (probably where it is the most useful) and displays that relevant data directly on the desktop of that particular machine. It can show useful information like, DNS settings, used IP Addresses, computer name, domain name, OS version, memory, service pack version, etc.
Whenever I create a new Windows Server 2016 or 2019 Virtual Machine (VM) template for customers, I mostly add this tool in the base image (also called golden image) and set it so it starts up automatically whenever a user logs on to the server. To automate this process, I wrote a PowerShell script which automates the complete BgInfo installation and configuration.
This script will do all of the following:
- Create the BgInfo folder on the C: drive if the folder does not already exist.
- Download the latest BgInfo tool from the Sysinternals webpage.

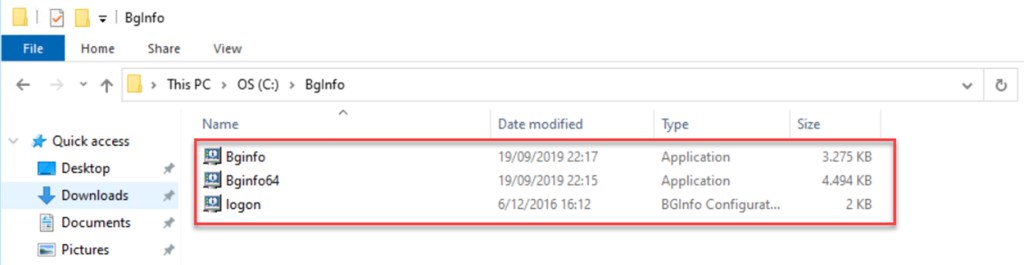

- Extract and cleanup the BGInfo.zip file in the BgInfo folder.

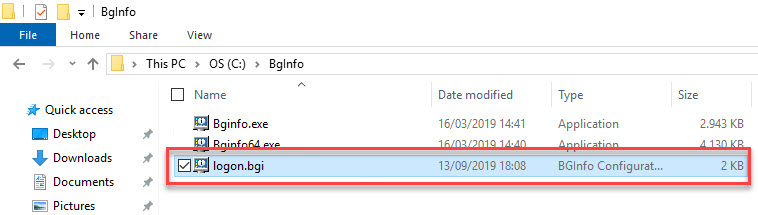

- Download the logon.bgi file which holds the preferred settings.
- Extract and cleanup the LogonBgi.zip file in the BgInfo folder.
- Create the registry key (regkey) to AutoStart the BgInfo tool in combination with the logon.bgi config file.
- Start BgInfo for the first time.
- Exit the PowerShell window upon completion.
Prerequisites
- OS: Windows Server 2016 or 2019
- PowerShell: Windows PowerShell 5.1
- Other: Internet connectivity
PowerShell Script
<# .SYNOPSIS A script used to download, install and configure the latest BgInfo version on a Windows Server 2016 or 2019. .DESCRIPTION A script used to download, install and configure the latest BgInfo version (v4.27) on a Windows Server 2016 or 2019. The BgInfo folder will be created on the C: drive if the folder does not already exist. Then the latest BgInfo.zip file will be downloaded and extracted in the BgInfo folder. The LogonBgi.zip file which holds the preferred settings will also be downloaded and extracted to the BgInfo folder. After extraction both .zip files will be deleted. A registry key (regkey) to AutoStart the BgInfo tool in combination with the logon.bgi config file will be created. At the end of the script BgInfo will be started for the first time and the PowerShell window will be closed. .NOTES File Name: BgInfo_Automated_Windows_Server_2016_2019.ps1 Created: 08/09/2019 Last modified: 13/09/2019 Author: Wim Matthyssen PowerShell: 5.1 or above Requires: -RunAsAdministrator OS: Windows Server 2016 and Windows Server 2019 Version: 2.2 Action: Change variables were needed to fit your needs Disclaimer: This script is provided "As Is" with no warranties. .EXAMPLE .\BgInfo_Automated_Windows_Server_2016_2019.ps1 .LINK https://tinyurl.com/y3wmsh7o #> ## Variables $bgInfoFolder = "C:\BgInfo" $bgInfoFolderContent = $bgInfoFolder + "\*" $itemType = "Directory" $bgInfoUrl = "https://download.sysinternals.com/files/BGInfo.zip" $bgInfoZip = "C:\BgInfo\BGInfo.zip" $bgInfoEula = "C:\BgInfo\Eula.txt" $logonBgiUrl = "https://tinyurl.com/yxlxbgun" $logonBgiZip = "C:\BgInfo\LogonBgi.zip" $bgInfoRegPath = "HKLM:\SOFTWARE\Microsoft\Windows\CurrentVersion\Run" $bgInfoRegKey = "BgInfo" $bgInfoRegType = "String" $bgInfoRegKeyValue = "C:\BgInfo\Bginfo64.exe C:\BgInfo\logon.bgi /timer:0 /nolicprompt" $regKeyExists = (Get-Item $bgInfoRegPath -EA Ignore).Property -contains $bgInfoRegkey $writeEmptyLine = "`n" $writeSeperator = " - " $time = Get-Date -UFormat "%A %m/%d/%Y %R" $foregroundColor1 = "Yellow" $foregroundColor2 = "Red" ##------------------------------------------------------------------------------------------------------------------------------------------------------- ## Write Download started Write-Host ($writeEmptyLine + "# BgInfo download started" + $writeSeperator + $time)` -foregroundcolor $foregroundColor1 $writeEmptyLine ##------------------------------------------------------------------------------------------------------------------------------------------------------- ## Create BgInfo folder on C: if not exists, else delete its content If (!(Test-Path -Path $bgInfoFolder)){New-Item -ItemType $itemType -Force -Path $bgInfoFolder Write-Host ($writeEmptyLine + "# BgInfo folder created" + $writeSeperator + $time)` -foregroundcolor $foregroundColor1 $writeEmptyLine }Else{Write-Host ($writeEmptyLine + "# BgInfo folder already exists" + $writeSeperator + $time)` -foregroundcolor $foregroundColor2 $writeEmptyLine Remove-Item $bgInfoFolderContent -Force -Recurse -ErrorAction SilentlyContinue Write-Host ($writeEmptyLine + "# Content existing BgInfo folder deleted" + $writeSeperator + $time)` -foregroundcolor $foregroundColor2 $writeEmptyLine} ##------------------------------------------------------------------------------------------------------------------------------------------------------- ## Download, save and extract latest BGInfo software to C:\BgInfo Import-Module BitsTransfer Start-BitsTransfer -Source $bgInfoUrl -Destination $bgInfoZip Expand-Archive -LiteralPath $bgInfoZip -DestinationPath $bgInfoFolder -Force Remove-Item $bgInfoZip Remove-Item $bgInfoEula Write-Host ($writeEmptyLine + "# bginfo.exe available" + $writeSeperator + $time)` -foregroundcolor $foregroundColor1 $writeEmptyLine ##------------------------------------------------------------------------------------------------------------------------------------------------------- ## Download, save and extract logon.bgi file to C:\BgInfo Invoke-WebRequest -Uri $logonBgiUrl -OutFile $logonBgiZip Expand-Archive -LiteralPath $logonBgiZip -DestinationPath $bgInfoFolder -Force Remove-Item $logonBgiZip Write-Host ($writeEmptyLine + "# logon.bgi available" + $writeSeperator + $time)` -foregroundcolor $foregroundColor1 $writeEmptyLine ##------------------------------------------------------------------------------------------------------------------------------------------------------- ## Create BgInfo Registry Key to AutoStart If ($regKeyExists -eq $True){Write-Host ($writeEmptyLine + "BgInfo regkey exists, script wil go on" + $writeSeperator + $time)` -foregroundcolor $foregroundColor2 $writeEmptyLine }Else{ New-ItemProperty -Path $bgInfoRegPath -Name $bgInfoRegkey -PropertyType $bgInfoRegType -Value $bgInfoRegkeyValue Write-Host ($writeEmptyLine + "# BgInfo regkey added" + $writeSeperator + $time)` -foregroundcolor $foregroundColor1 $writeEmptyLine} ##------------------------------------------------------------------------------------------------------------------------------------------------------- ## Run BgInfo C:\BgInfo\Bginfo64.exe C:\BgInfo\logon.bgi /timer:0 /nolicprompt Write-Host ($writeEmptyLine + "# BgInfo has ran for the first time" + $writeSeperator + $time)` -foregroundcolor $foregroundColor1 $writeEmptyLine ##------------------------------------------------------------------------------------------------------------------------------------------------------- ## Exit PowerShell window 2 seconds after completion Write-Host ($writeEmptyLine + "# Script completed, the PowerShell window will close in 2 seconds" + $writeSeperator + $time)` -foregroundcolor $foregroundColor2 $writeEmptyLine Start-Sleep 2 stop-process -Id $PID ##-------------------------------------------------------------------------------------------------------------------------------------------------------
To use the script copy and save the above as BgInfo_Automated_Windows_Server_2016_2019.ps1 or download it from the GitHub. Afterwards run the script with Administrator privileges from the server you wish to use for your VM template.

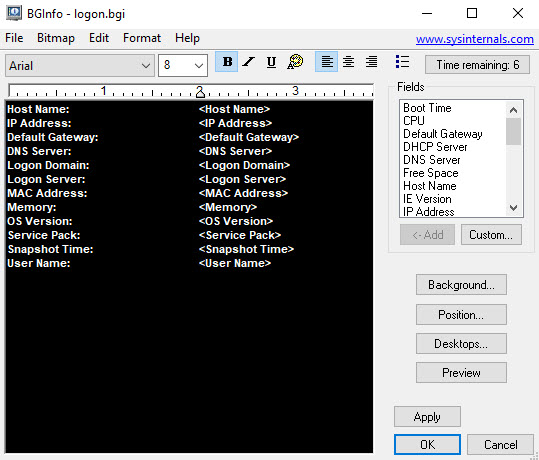

Customize logon.bgi
If you want to change any configuration setting (for example the font style or published info), just open the logon.bgi file and adjust the settings to your preferences. Click OK to save and set the new settings.


Hope this script comes in handy for you. If you have any questions or recommendations about it, feel free to contact me through my Twitter handle.
