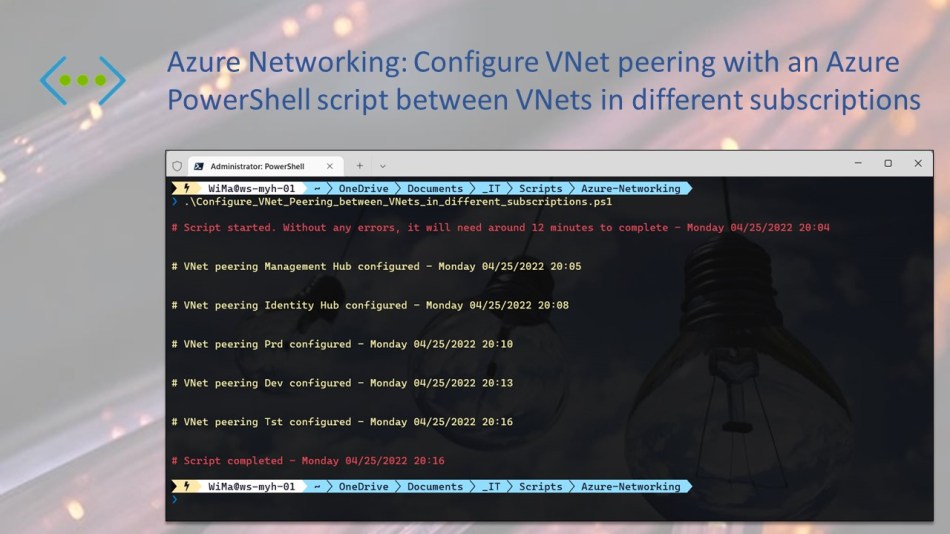

Azure Networking: Configure VNet peering with an Azure PowerShell script between VNets in different subscriptions


This blog post shows how you can configure VNet Peering between virtual networks (VNets) in different Azure Subscriptions with the use of an Azure PowerShell script.

Virtual network peering is a mechanism that enables you to seamlessly connects two or more VNets. Once peered, those VNets appear as one, and Azure resources, like Azure Virtual Machines (VMs), can be accessed from both VNets via their private IP addresses. The traffic between those VMs in the peered VNets is then routed through the Microsoft backbone infrastructure.

At the moment Azure supports two types of peering:

  • VNet peering – which allows you connecting VNets within the same Azure region.
  • Global VNet peering – which allows you connecting VNets across Azure regions.

If you want to read some more about Virtual network peering, you can do so via the following Microsoft Docs link: Virutal network peering documentation


To automate the deployment process of the VNet peering between several VNets in different Azure Subscriptions, I wrote the below Azure PowerShell script which does all of the following:

  • Check if the PowerShell window is running as Administrator (when not running from Cloud Shell), otherwise the Azure PowerShell script will be exited.
  • Suppress breaking change warning messages.
  • Create peerings from the Management Hub VNet to all spokes VNets (peerings with VNets in different subscriptions and the Virtual network gateway or Route Server set), if they don’t exist.
  • Create peering between the Identity Hub VNet and the Management Hub VNet (peering with VNets in different subscriptions and use of remote gateway), if it doesn’t exist.
  • Create peering between the Spoke 1 VNet (e.g. Production) and the Management Hub VNet (peering with VNets in different subscriptions and use of remote gateway), if it doesn’t exist.
  • Create peering between the Spoke 2 VNet (e.g. Development) and the Management Hub VNet (peering with VNets in different subscriptions and use of remote gateway), if it doesn’t exist.
  • Create peering between the Spoke 3 VNet (e.g. Test) and the Management Hub VNet (peering with VNets in different subscriptions and use of remote gateway), if it doesn’t exist.



To use the script copy and save it as Configure_VNet_Peering_between_VNets_in_different_subscriptions.ps1 or download it from GitHub. Then before using the script, adjust all variables to your use and then run the customized script with Administrator privileges from Windows TerminalVisual Studio Code, or Windows PowerShell. Or you can simply run it from Cloud Shell.


Prerequisites

  • Different Azure subscriptions. (off course you can also use a customized version of the script to peer VNets in just one or two subscriptions).
  • An Azure Administrator account with the necessary RBAC roles.
  • Existing VNets in different subscriptions (preferably a Management (Hub) VNet, Identity (Hub) VNet, Production VNet, Development VNet and Test VNet in according subscriptions.
  • At least Azure Az PowerShell module version 7.2.0 and Az.Network module version 4.16.0
  • Change all the variables in the script where needed to fit your needs (you can find an adjusted example in one of the screenshots below).






Azure PowerShell script

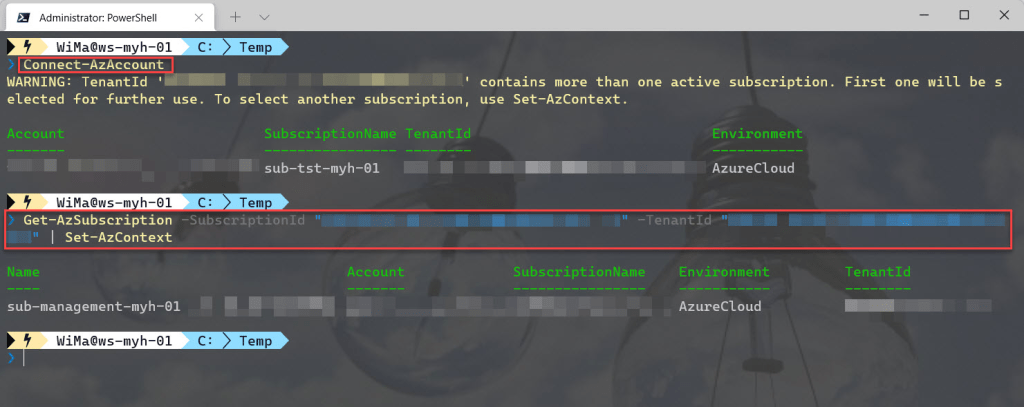

If you are not running the script from Cloud Shell, don’t forget to sign in with the Connect-AzAccount cmdlet to connect your Azure account. And if you are using multiple Azure subscriptions, select the proper subscription with the Get-AzSubscription cmdlet before running the script.


<#
.SYNOPSIS

A script used to configure VNet peering between Hub and spoke VNets in different Azure Subscriptions.

.DESCRIPTION

A script used to configure VNet peering between Hub and spoke VNets in different Azure Subscriptions.

.NOTES

Filename:       Configure-VNet-Peering-between-VNets-in-different-subscriptions.ps1
Created:        20/04/2021
Last modified:  25/04/2022
Author:         Wim Matthyssen
PowerShell:     Azure PowerShell or Azure Cloud Shell
Version:        Install latest Azure PowerShell modules (at least Az version 7.2.0 and Az.Network version 4.16.0 is required)
Action:         Change variables were needed to fit your needs
Disclaimer:     This script is provided "As Is" with no warranties.

.EXAMPLE

Connect-AzAccount
.\Configure-VNet-Peering-between-VNets-in-different-subscriptions.ps1

.LINK

https://wmatthyssen.com/2022/04/25/azure-networking-configure-vnet-peering-with-an-azure-powershell-script-between-vnets-in-different-subscriptions/
#>

## ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Variables

$hub = "hub"
$spoke1 = "prd"
$spoke2 = "dev"
$spoke3 = "tst"

$subNameManagement = Get-AzSubscription | Where-Object {$_.Name -like "*management*"} #if needed, adjust to your subscription naming
$subNameIdentity = Get-AzSubscription | Where-Object {$_.Name -like "*identity*"} #if needed, adjust to your subscription naming
$subNamePrd = Get-AzSubscription | Where-Object {$_.Name -like "*$spoke1*corp*"} #if needed, adjust to your subscription naming
$subNameDev = Get-AzSubscription | Where-Object {$_.Name -like "*$spoke2*corp*"} #if needed, adjust to your subscription naming
$subNameTst = Get-AzSubscription | Where-Object {$_.Name -like "*$spoke3*"} #if needed, adjust to your subscription naming

$tenant = Get-AzTenant | Where-Object {$_.Name -like "*$companyShortName*"}

$rgNetworkingManagementHub = #<your Management Hub VNet rg here> The Azure resource group in which your existing Management Hub VNet is deployed. Example: "rg-hub-myh-networking-01"
$rgNetworkingIdentityHub = #<your Identity Hub VNet rg here> The Azure resource group in which your existing Identity Hub VNet is deployed. Example: "rg-hub-myh-networking-02"
$rgNetworkingSpoke1 = #<your Spoke 1 VNet rg here> The Azure resource group in which your existing Spoke 1 VNet is deployed. Example: "rg-prd-myh-networking-01"
$rgNetworkingSpoke2 = #<your Spoke 2 VNet rg here> The Azure resource group in which your existing Spoke 2 VNet is deployed. Example: "rg-dev-myh-networking-01"
$rgNetworkingSpoke3 = #<your Spoke 3 VNet rg here> The Azure resource group in which your existing Spoke 3 VNet is deployed. Example: "rg-tst-myh-networking-01"

$vnetNameManagementHub = #<your Management Hub VNet name here> The existing VNet in the Management Hub. Example: "vnet-hub-myh-weu-01"
$vnetNameIdenitityHub = #<your Identity Hub VNet name here> The existing VNet in the Management Hub. Example: "vnet-hub-myh-weu-02"
$vnetNameSpoke1 = #<your Spoke 1 VNet name here> The existing VNet in Spoke 1. Example: "vnet-prd-myh-weu-01"
$vnetNameSpoke2 = #<your Spoke 2 VNet name here> The existing VNet in Spoke 2. Example: "vnet-dev-myh-weu-01"
$vnetNameSpoke3 = #<your Spoke 3 VNet name here> The existing VNet in Spoke 3. Example: "vnet-tst-myh-weu-01"

$subShort = "/subscriptions/"
$rgShort = "/resourceGroups/"
$providersShort = "/providers/Microsoft.Network/virtualNetworks/"

$remoteManagementHubVirtualNetworkId = $subShort + $subNameManagement.SubscriptionId + $rgShort + $rgNetworkingManagementHub + $providersShort + $vnetNameManagementHub
$remoteIdentityHubVirtualNetworkId = $subShort + $subNameIdentity.SubscriptionId + $rgShort + $rgNetworkingIdentityHub + $providersShort + $vnetNameIdenitityHub
$remoteSpoke1VirtualNetworkId = $subShort + $subNamePrd.SubscriptionId + $rgShort + $rgNetworkingSpoke1 + $providersShort + $vnetNameSpoke1
$remoteSpoke2VirtualNetworkId = $subShort + $subNameDev.SubscriptionId + $rgShort + $rgNetworkingSpoke2 + $providersShort + $vnetNameSpoke2
$remoteSpoke3VirtualNetworkId = $subShort + $subNameTst.SubscriptionId + $rgShort + $rgNetworkingSpoke3 + $providersShort + $vnetNameSpoke3

$peeringNameHub1 = #<your peering name Hub VNet 2 Hub Identity VNet> The peering name for the peering between the Hub VNet and Hub Identity VNet. Example: "peer-hub-2-hub-ide"
$peeringNameHub2 = #<your peering name Hub VNet 2 Spoke 1 VNet> The peering name for the peering between the Hub VNet and Spoke 1 VNet. Example: "peer-hub-2-hub-prd"
$peeringNameHub3 = #<your peering name Hub VNet 2 Spoke 2 VNet> The peering name for the peering between the Hub VNet and Spoke 2 VNet. Example: "peer-hub-2-hub-dev"
$peeringNameHub4 = #<your peering name Hub VNet 2 Spoke 3 VNet> The peering name for the peering between the Hub VNet and Spoke 3 VNet. Example: "peer-hub-2-hub-tst"
$peeringNameIde1 = #<your peering name Hub Identity VNet 2 Hub VNet> The peering name for the peering between the Hub Identity VNet and Hub VNet. Example: "peer-hub-ide-2-hub"
$peeringNamePrd1 = #<your peering name Spoke 1 VNet 2 Hub VNet> The peering name for the peering between the Spoke 1 VNet and Hub VNet. Example: "peer-prd-2-hub"
$peeringNameDev1 = #<your peering name Spoke 2 VNet 2 Hub VNet> The peering name for the peering between the Spoke 2 VNet and Hub VNet. Example: "peer-dev-2-hub"
$peeringNameTst1 = #<your peering name Spoke 3 VNet 2 Hub VNet> The peering name for the peering between the Spoke 3 VNet and Hub VNet. Example: "peer-tst-2-hub"

$global:currenttime= Set-PSBreakpoint -Variable currenttime -Mode Read -Action {$global:currenttime= Get-Date -UFormat "%A %m/%d/%Y %R"}
$foregroundColor1 = "Red"
$foregroundColor2 = "Yellow"
$writeEmptyLine = "`n"
$writeSeperatorSpaces = " - "

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Check if PowerShell runs as Administrator (when not running from Cloud Shell), otherwise exit the script

if ($PSVersionTable.Platform -eq "Unix") {
    Write-Host ($writeEmptyLine + "# Running in Cloud Shell" + $writeSeperatorSpaces + $currentTime)`
    -foregroundcolor $foregroundColor1 $writeEmptyLine

    ## Start script execution
    Write-Host ($writeEmptyLine + "# Script started. Without any errors, it will need around 12 minutes to complete" + $writeSeperatorSpaces + $currentTime)`
    -foregroundcolor $foregroundColor1 $writeEmptyLine
} else {
    $currentPrincipal = New-Object Security.Principal.WindowsPrincipal([Security.Principal.WindowsIdentity]::GetCurrent())
    $isAdministrator = $currentPrincipal.IsInRole([Security.Principal.WindowsBuiltInRole]::Administrator)

        ## Check if running as Administrator, otherwise exit the script
        if ($isAdministrator -eq $false) {
        Write-Host ($writeEmptyLine + "# Please run PowerShell as Administrator" + $writeSeperatorSpaces + $currentTime)`
        -foregroundcolor $foregroundColor1 $writeEmptyLine
        Start-Sleep -s 3
        exit
        }
        else {

        ## If running as Administrator, start script execution
        Write-Host ($writeEmptyLine + "# Script started. Without any errors, it will need around 12 minutes to complete" + $writeSeperatorSpaces + $currentTime)`
        -foregroundcolor $foregroundColor1 $writeEmptyLine
        }
}

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Suppress breaking change warning messages

Set-Item Env:\SuppressAzurePowerShellBreakingChangeWarnings "true"

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Create peerings from Management Hub VNet to all spokes VNets (peering with use of Virtual network gateway or Route Server set), if they don't exist

# Change the current context to use the Management subscription
Set-AzContext -TenantId $tenant.TenantId -SubscriptionId $subNameManagement.SubscriptionId | Out-Null

$vnetManagementHub = Get-AzVirtualNetwork -Name $vnetNameManagementHub -ResourceGroupName $rgNetworkingManagementHub

# Create $peeringNameHub1, if it doesn't exist (peering with use of Virtual network gateway or Route Server set)
try {
    Get-AzVirtualNetworkPeering -VirtualNetworkName $vnetManagementHub.Name -ResourceGroupName $rgNetworkingManagementHub -Name $peeringNameHub1 -ErrorAction Stop | Out-Null
} catch {
    Add-AzVirtualNetworkPeering -Name $peeringNameHub1 -VirtualNetwork $vnetManagementHub -RemoteVirtualNetworkId $remoteIdentityHubVirtualNetworkId -AllowGatewayTransit | Out-Null
}

# Create $peeringNameHub2, if it doesn't exist (peering with use of Virtual network gateway or Route Server set)
try {
    Get-AzVirtualNetworkPeering -VirtualNetworkName $vnetManagementHub.Name -ResourceGroupName $rgNetworkingManagementHub -Name $peeringNameHub2 -ErrorAction Stop | Out-Null
} catch {
    Add-AzVirtualNetworkPeering -Name $peeringNameHub2 -VirtualNetwork $vnetManagementHub -RemoteVirtualNetworkId $remoteSpoke1VirtualNetworkId -AllowGatewayTransit | Out-Null
}

# Create $peeringNameHub3, if it doesn't exist (peering with use of Virtual network gateway or Route Server set)
try {
    Get-AzVirtualNetworkPeering -VirtualNetworkName $vnetManagementHub.Name -ResourceGroupName $rgNetworkingManagementHub -Name $peeringNameHub3 -ErrorAction Stop | Out-Null
} catch {
    Add-AzVirtualNetworkPeering -Name $peeringNameHub3 -VirtualNetwork $vnetManagementHub -RemoteVirtualNetworkId $remoteSpoke2VirtualNetworkId -AllowGatewayTransit | Out-Null
}

# Create $peeringNameHub4, if it doesn't exist (peering with use of Virtual network gateway or Route Server set)
try {
    Get-AzVirtualNetworkPeering -VirtualNetworkName $vnetManagementHub.Name -ResourceGroupName $rgNetworkingManagementHub -Name $peeringNameHub4 -ErrorAction Stop | Out-Null
} catch {
    Add-AzVirtualNetworkPeering -Name $peeringNameHub4 -VirtualNetwork $vnetManagementHub -RemoteVirtualNetworkId $remoteSpoke3VirtualNetworkId -AllowGatewayTransit | Out-Null
}

Write-Host ($writeEmptyLine + "# VNet peering Management Hub configured" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor2 $writeEmptyLine

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Create peering Identity Hub VNet - Management Hub VNet (peering with different subscriptions and use of remote gateway), if it doesn't exist

# Change the current context to use the Identity subscription
Set-AzContext -TenantId $tenant.TenantId -SubscriptionId $subNameIdentity.SubscriptionId | Out-Null

$vnetIdentityHub = Get-AzVirtualNetwork -Name $vnetNameIdenitityHub -ResourceGroupName $rgNetworkingIdentityHub

try {
    Get-AzVirtualNetworkPeering -VirtualNetworkName $vnetIdentityHub.Name -ResourceGroupName $rgNetworkingIdentityHub -Name $peeringNameIde1 -ErrorAction Stop | Out-Null
} catch {
    Add-AzVirtualNetworkPeering -Name $peeringNameIde1 -VirtualNetwork $vnetIdentityHub -RemoteVirtualNetworkId $remoteManagementHubVirtualNetworkId -UseRemoteGateways | Out-Null
}

Write-Host ($writeEmptyLine + "# VNet peering Identity Hub configured" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor2 $writeEmptyLine

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Create peering Spoke 1 (e.g. Production) VNet - Management Hub VNet (peering with different subscriptions and use of remote gateway), if it doesn't exist

# Change the current context to use the spoke 1 subscription
Set-AzContext -TenantId $tenant.TenantId -SubscriptionId $subNamePrd.SubscriptionId | Out-Null

$vnetSpoke1 = Get-AzVirtualNetwork -Name $vnetNameSpoke1 -ResourceGroupName $rgNetworkingSpoke1

try {
    Get-AzVirtualNetworkPeering -VirtualNetworkName $vnetSpoke1.Name -ResourceGroupName $rgNetworkingSpoke1 -Name $peeringNamePrd1 -ErrorAction Stop | Out-Null
} catch {
    Add-AzVirtualNetworkPeering -Name $peeringNamePrd1 -VirtualNetwork $vnetSpoke1 -RemoteVirtualNetworkId $remoteManagementHubVirtualNetworkId -UseRemoteGateways | Out-Null
}

Write-Host ($writeEmptyLine + "# VNet peering $spoke1 configured" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor2 $writeEmptyLine

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Create peering Spoke 2 (e.g. Development) VNet - Management Hub VNet (peering with different subscriptions and use of remote gateway), if it doesn't exist

# Change the current context to use the spoke 2 subscription
Set-AzContext -TenantId $tenant.TenantId -SubscriptionId $subNameDev.SubscriptionId | Out-Null

$vnetSpoke2 = Get-AzVirtualNetwork -Name $vnetNameSpoke2 -ResourceGroupName $rgNetworkingSpoke2

try {
    Get-AzVirtualNetworkPeering -VirtualNetworkName $vnetSpoke2.Name -ResourceGroupName $rgNetworkingSpoke2 -Name $peeringNameDev1 -ErrorAction Stop | Out-Null
} catch {
    Add-AzVirtualNetworkPeering -Name $peeringNameDev1 -VirtualNetwork $vnetSpoke2 -RemoteVirtualNetworkId $remoteManagementHubVirtualNetworkId -UseRemoteGateways | Out-Null
}

Write-Host ($writeEmptyLine + "# VNet peering $spoke2 configured" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor2 $writeEmptyLine

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Create peering Spoke 3 (e.g. Test) VNet - Management Hub VNet (peering with different subscriptions and use of remote gateway), if it doesn't exist

# Change the current context to use the spoke 3 subscription
Set-AzContext -TenantId $tenant.TenantId -SubscriptionId $subNameTst.SubscriptionId | Out-Null

$vnetSpoke3 = Get-AzVirtualNetwork -Name $vnetNameSpoke3 -ResourceGroupName $rgNetworkingSpoke3

try {
    Get-AzVirtualNetworkPeering -VirtualNetworkName $vnetSpoke3.Name -ResourceGroupName $rgNetworkingSpoke3 -Name $peeringNameTst1 -ErrorAction Stop | Out-Null
} catch {
    Add-AzVirtualNetworkPeering -Name $peeringNameTst1 -VirtualNetwork $vnetSpoke3 -RemoteVirtualNetworkId $remoteManagementHubVirtualNetworkId -UseRemoteGateways | Out-Null
}

Write-Host ($writeEmptyLine + "# VNet peering $spoke3 configured" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor2 $writeEmptyLine

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Write script completed

Write-Host ($writeEmptyLine + "# Script completed" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor1 $writeEmptyLine

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------










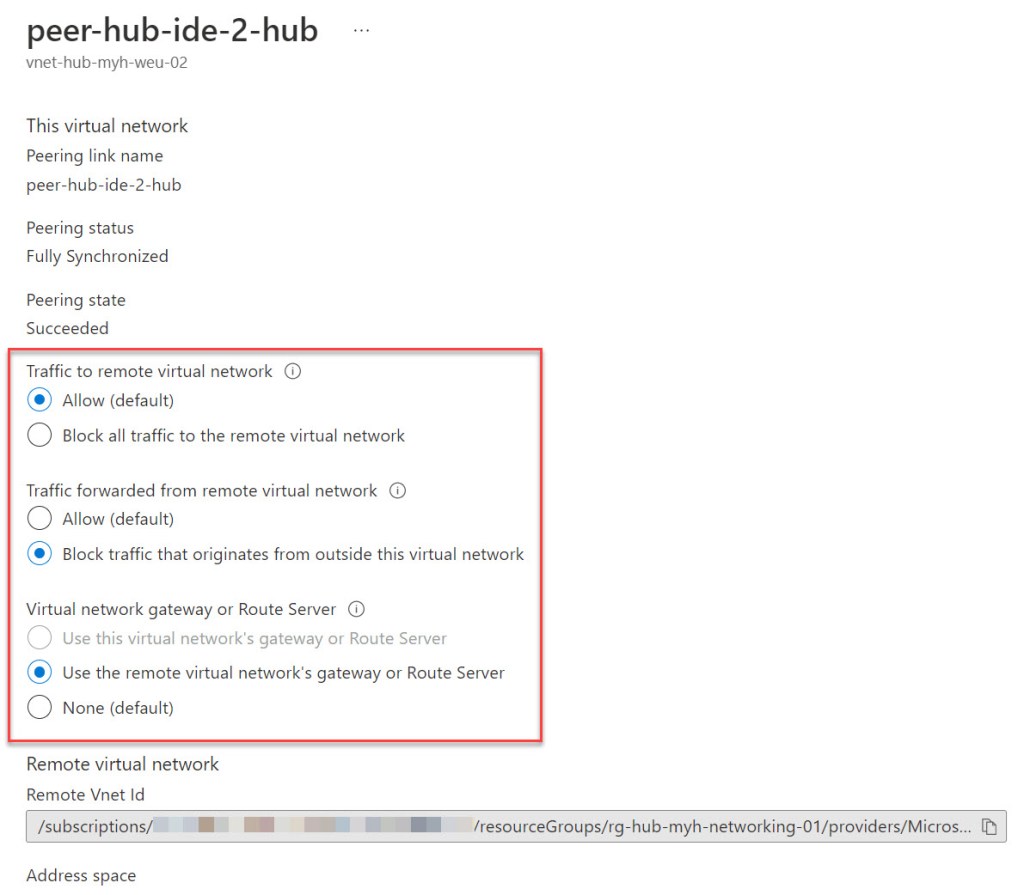

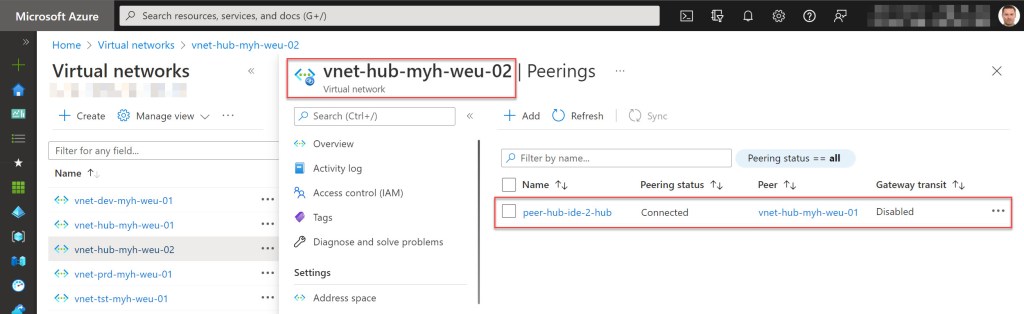

I hope this Azure PowerShell script is useful for you and provides you with a good starting point to foresee VNet peering into your Azure environment.

If you have any questions or recommendations about it, feel free to contact me through my Twitter handle (@wmatthyssen) or to just leave a comment.
