While deploying an Azure Migrate virtual appliance to perform an Azure VM assessment for Hyper-V virtual machines (VMs) running on a standalone non-domain joined Hyper-V host, I received the following error during the source discovery:
Status: Validation failed
Looking into the details of the validation error, I could see that “Access was denied” and that the credentials provided for discovery needed to be verified.
After some troubleshooting, I ruled out that the credentials used were correct and that the Hyper-V host could be contacted from the appliance. I also checked whether the user used had local Administrator rights (Administrator access) on the Hyper-V host. Which was also the case.

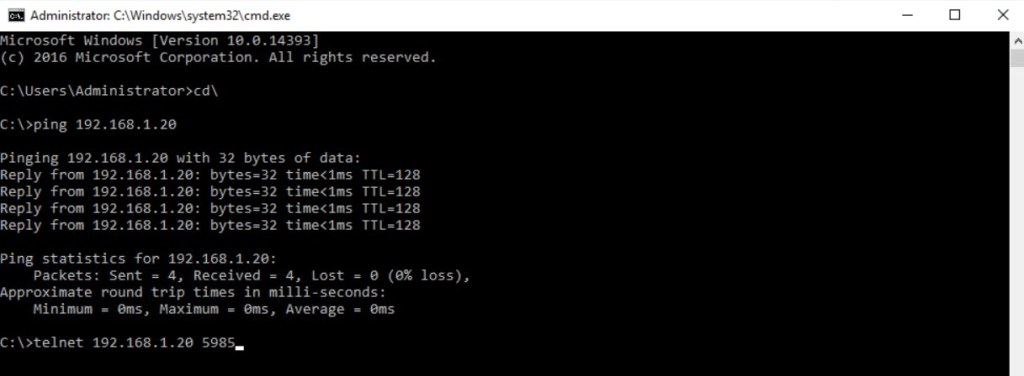

Check if the Hyper-V host is reachable from the appliance.
ping <IP Address Hyper-V host>
Check if the Hyper-V host is accessible over port 5985 (WinRM).
telnet <IP Address Hyper-V host> 5985

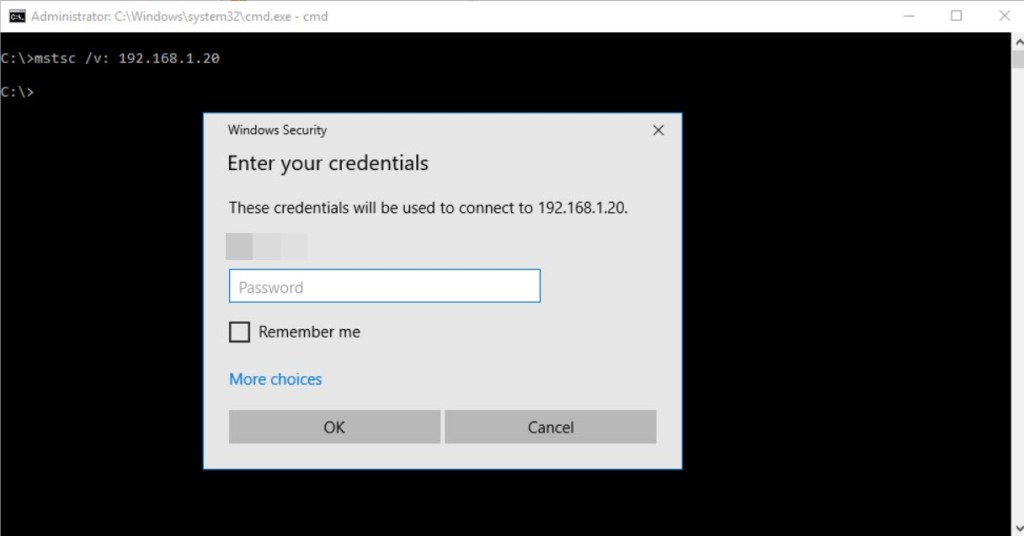

Check if you can access the Hyper-V host with RDP and logon with the specific (local) username.
mstsc /v: <IP Address Hyper-V host>

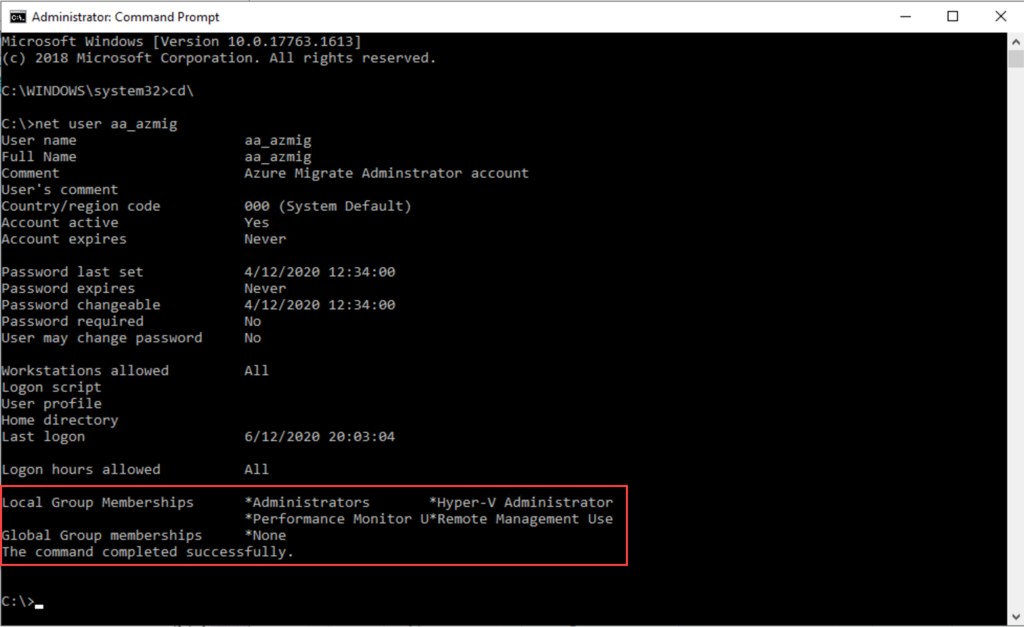

List all groups the local user is a member of (run on the Hyper-V host).
net user <username>
After doing some more troubleshooting, and reading trough the Microsoft docs, I finally figured out the issue. On a stand-alone non-domain joined Hyper-V host the user used for the discovery does not only needs to be a member of the Local Administrators group, but also of the Hyper-V Administrators, Performance Monitor Users and Remote Management Users groups.

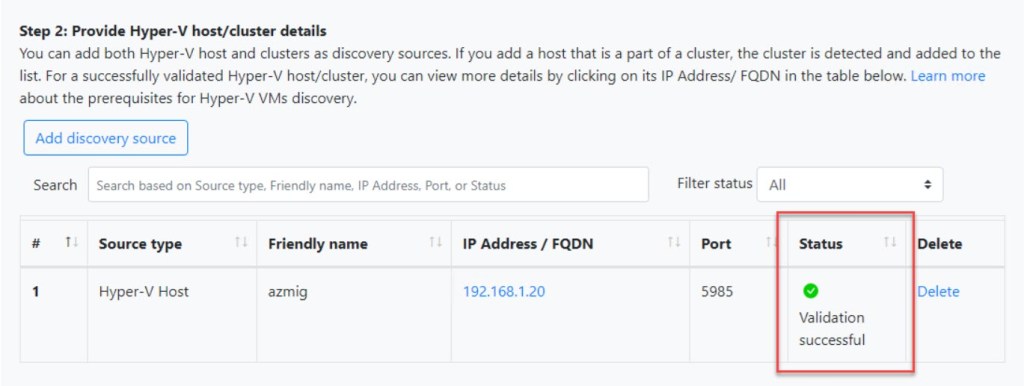

After adding the user to all these groups the validation was successful (after revalidation) and I could start with the discovery.
To ease up the whole process in case I need to discover VMs on another stand alone non-domain joined Hyper-V host, I wrote the below PowerShell script, which creates a Local Admin belonging to all necessary groups on the Hyper-V host.
This PowerShell script will do all of the following:
Check if PowerShell is running as Administrator, otherwise close the PowerShell window.
Create a secure password for the Local Admin account (save variable as a secure string).
Create the Local Admin account and set the password to the one stored in the secure string.
Specifies the Full Name and Description parameters for the Local Admin account.

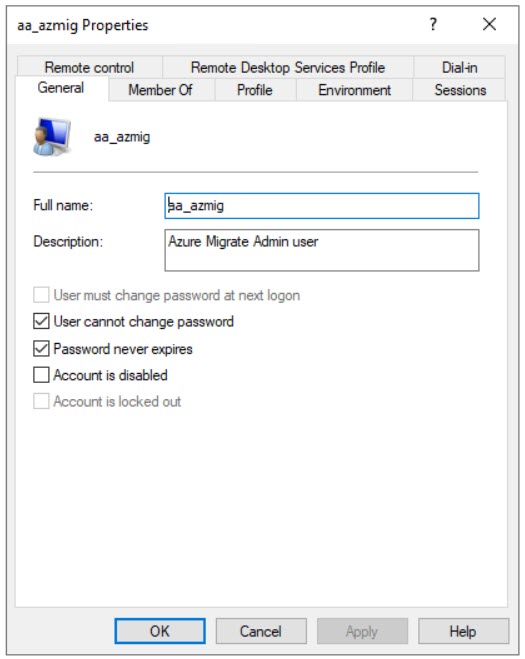

Also sets the following attributes for the Local Admin account: User cannot change password and Password never expires.
Add the Local Admin account to the required groups: Hyper-V Administrators, Remote Management Users, and Performance Monitor User.

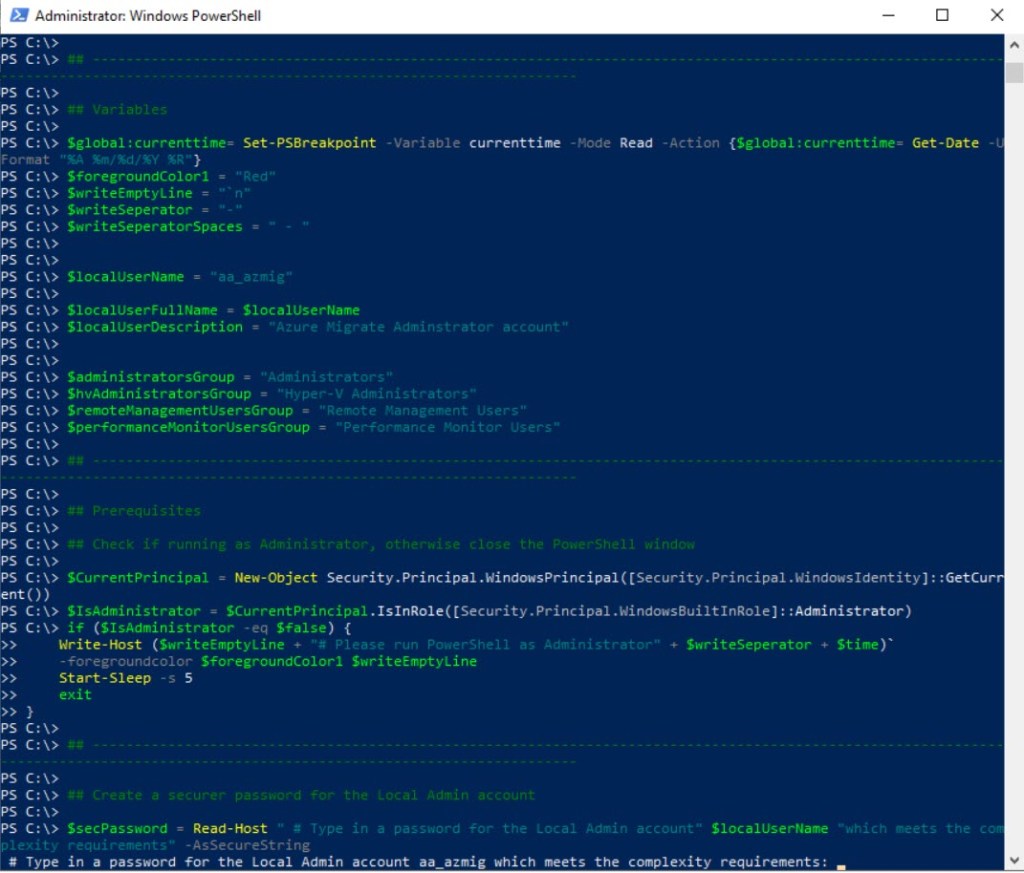

PowerShell script: Create Azure Migrate Local Admin on Hyper-V
To use the script copy and save it as Create_Azure_Migrate_Local_Admin_on_Hyper-V.ps1 or download it from GitHub. First adjust all variables to your use and afterwards run the script with Administrator privileges from Windows PowerShell or Windows Terminal.
<#
.SYNOPSIS
A script used to create an Azure Migrate Local Admin account on a standalone non-domain joined Hyper-V host
.DESCRIPTION
A script used to create an Azure Migrate Local Admin account on a standalone non-domain joined Hyper-V host.
This Local Admin account will also added to the following groups: Hyper-V Administrators, Remote Management Users, and Performance Monitor Users.
.NOTES
Filename: Create_Azure_Migrate_Local_Admin_on_Hyper-V.ps1
Created: 03/12/2020
Last modified: 04/12/2020
Author: Wim Matthyssen
PowerShell: 5.1
Action: Change variables were needed to fit your needs.
Disclaimer: This script is provided "As IS" with no warranties.
.EXAMPLE
.\Create_Azure_Migrate_Local_Admin_on_Hyper-V.ps1
.LINK
https://wmatthyssen.com/2020/12/06/azure-migrate-source-validation-of-a-standalone-non-domain-joined-hyper-v-host-fails-with-error-access-is-denied/
#>
## ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
## Variables
$global:currenttime= Set-PSBreakpoint -Variable currenttime -Mode Read -Action {$global:currenttime= Get-Date -UFormat "%A %m/%d/%Y %R"}
$foregroundColor1 = "Red"
$writeEmptyLine = "`n"
$writeSeperatorSpaces = " - "
$localUserName = "aa_azmig"
$localUserFullName = $localUserName
$localUserDescription = "Azure Migrate Adminstrator account"
$administratorsGroup = "Administrators"
$hvAdministratorsGroup = "Hyper-V Administrators"
$remoteManagementUsersGroup = "Remote Management Users"
$performanceMonitorUsersGroup = "Performance Monitor Users"
## ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
## Prerequisites
## Check if running as Administrator, otherwise close the PowerShell window
$CurrentPrincipal = New-Object Security.Principal.WindowsPrincipal([Security.Principal.WindowsIdentity]::GetCurrent())
$IsAdministrator = $CurrentPrincipal.IsInRole([Security.Principal.WindowsBuiltInRole]::Administrator)
if ($IsAdministrator -eq $false) {
Write-Host ($writeEmptyLine + "# Please run PowerShell as Administrator" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor1 $writeEmptyLine
Start-Sleep -s 5
exit
}
## ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
## Create a secure password for the Local Admin account
$secPassword = Read-Host " # Type in a password for the Local Admin account" $localUserName "which meets the complexity requirements" –AsSecureString
## ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
## Create Local Admin account
New-LocalUser -Name $localUserName -Password $secPassword -FullName $localUserFullName -Description $localUserDescription -UserMayNotChangePassword -PasswordNeverExpires –Verbose
Write-Host ($writeEmptyLine + " # Local Admin Account " + $localUserName + " created" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor1 $writeEmptyLine
## ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
## Add Local Admin account to the required groups
Add-LocalGroupMember -Group $administratorsGroup -Member $localUserName –Verbose
Add-LocalGroupMember -Group $hvAdministratorsGroup -Member $localUserName –Verbose
Add-LocalGroupMember -Group $remoteManagementUsersGroup -Member $localUserName –Verbose
Add-LocalGroupMember -Group $performanceMonitorUsersGroup -Member $localUserName –Verbose
Write-Host ($writeEmptyLine + " # Local Admin Account " + $localUserName + " added to the required groups" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor1 $writeEmptyLine
## ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Conclusion
When assessing VMs running on a standalone non-domain joined Hyper-V host, the Local Admin account used for the discovery, also needs to be a member of the Hyper-V Administrators, Performance Monitor Users and Remote Management Users group. Otherwise the discovery will fail with a validation failed error.
Wim Matthyssen
While deploying an Azure Migrate virtual appliance to perform an Azure VM assessment for Hyper-V virtual machines (VMs) running on a standalone non-domain joined Hyper-V host, I received the following error during the source discovery:
Status: Validation failed
Looking into the details of the validation error, I could see that “Access was denied” and that the credentials provided for discovery needed to be verified.
After some troubleshooting, I ruled out that the credentials used were correct and that the Hyper-V host could be contacted from the appliance. I also checked whether the user used had local Administrator rights (Administrator access) on the Hyper-V host. Which was also the case.
Check if the Hyper-V host is reachable from the appliance.
Check if the Hyper-V host is accessible over port 5985 (WinRM).
Check if you can access the Hyper-V host with RDP and logon with the specific (local) username.
List all groups the local user is a member of (run on the Hyper-V host).
After doing some more troubleshooting, and reading trough the Microsoft docs, I finally figured out the issue. On a stand-alone non-domain joined Hyper-V host the user used for the discovery does not only needs to be a member of the Local Administrators group, but also of the Hyper-V Administrators, Performance Monitor Users and Remote Management Users groups.
After adding the user to all these groups the validation was successful (after revalidation) and I could start with the discovery.
To ease up the whole process in case I need to discover VMs on another stand alone non-domain joined Hyper-V host, I wrote the below PowerShell script, which creates a Local Admin belonging to all necessary groups on the Hyper-V host.
This PowerShell script will do all of the following:
PowerShell script: Create Azure Migrate Local Admin on Hyper-V
To use the script copy and save it as Create_Azure_Migrate_Local_Admin_on_Hyper-V.ps1 or download it from GitHub. First adjust all variables to your use and afterwards run the script with Administrator privileges from Windows PowerShell or Windows Terminal.
<# .SYNOPSIS A script used to create an Azure Migrate Local Admin account on a standalone non-domain joined Hyper-V host .DESCRIPTION A script used to create an Azure Migrate Local Admin account on a standalone non-domain joined Hyper-V host. This Local Admin account will also added to the following groups: Hyper-V Administrators, Remote Management Users, and Performance Monitor Users. .NOTES Filename: Create_Azure_Migrate_Local_Admin_on_Hyper-V.ps1 Created: 03/12/2020 Last modified: 04/12/2020 Author: Wim Matthyssen PowerShell: 5.1 Action: Change variables were needed to fit your needs. Disclaimer: This script is provided "As IS" with no warranties. .EXAMPLE .\Create_Azure_Migrate_Local_Admin_on_Hyper-V.ps1 .LINK https://wmatthyssen.com/2020/12/06/azure-migrate-source-validation-of-a-standalone-non-domain-joined-hyper-v-host-fails-with-error-access-is-denied/ #> ## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ## Variables $global:currenttime= Set-PSBreakpoint -Variable currenttime -Mode Read -Action {$global:currenttime= Get-Date -UFormat "%A %m/%d/%Y %R"} $foregroundColor1 = "Red" $writeEmptyLine = "`n" $writeSeperatorSpaces = " - " $localUserName = "aa_azmig" $localUserFullName = $localUserName $localUserDescription = "Azure Migrate Adminstrator account" $administratorsGroup = "Administrators" $hvAdministratorsGroup = "Hyper-V Administrators" $remoteManagementUsersGroup = "Remote Management Users" $performanceMonitorUsersGroup = "Performance Monitor Users" ## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ## Prerequisites ## Check if running as Administrator, otherwise close the PowerShell window $CurrentPrincipal = New-Object Security.Principal.WindowsPrincipal([Security.Principal.WindowsIdentity]::GetCurrent()) $IsAdministrator = $CurrentPrincipal.IsInRole([Security.Principal.WindowsBuiltInRole]::Administrator) if ($IsAdministrator -eq $false) { Write-Host ($writeEmptyLine + "# Please run PowerShell as Administrator" + $writeSeperatorSpaces + $currentTime)` -foregroundcolor $foregroundColor1 $writeEmptyLine Start-Sleep -s 5 exit } ## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ## Create a secure password for the Local Admin account $secPassword = Read-Host " # Type in a password for the Local Admin account" $localUserName "which meets the complexity requirements" –AsSecureString ## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ## Create Local Admin account New-LocalUser -Name $localUserName -Password $secPassword -FullName $localUserFullName -Description $localUserDescription -UserMayNotChangePassword -PasswordNeverExpires –Verbose Write-Host ($writeEmptyLine + " # Local Admin Account " + $localUserName + " created" + $writeSeperatorSpaces + $currentTime)` -foregroundcolor $foregroundColor1 $writeEmptyLine ## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ## Add Local Admin account to the required groups Add-LocalGroupMember -Group $administratorsGroup -Member $localUserName –Verbose Add-LocalGroupMember -Group $hvAdministratorsGroup -Member $localUserName –Verbose Add-LocalGroupMember -Group $remoteManagementUsersGroup -Member $localUserName –Verbose Add-LocalGroupMember -Group $performanceMonitorUsersGroup -Member $localUserName –Verbose Write-Host ($writeEmptyLine + " # Local Admin Account " + $localUserName + " added to the required groups" + $writeSeperatorSpaces + $currentTime)` -foregroundcolor $foregroundColor1 $writeEmptyLine ## ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Conclusion
When assessing VMs running on a standalone non-domain joined Hyper-V host, the Local Admin account used for the discovery, also needs to be a member of the Hyper-V Administrators, Performance Monitor Users and Remote Management Users group. Otherwise the discovery will fail with a validation failed error.
