Connecting to an Azure Windows VM using an Azure PowerShell script and native client via Azure Bastion

.\Connect-RDP-Azure-Windows-VM-using-native-client-via-Azure-Bastion.ps1 <"your VM name here">

<#

.SYNOPSIS

A script used to RDP to a target Azure Windows VM using Tunneling from Azure Bastion with Azure CLI and PowerShell.

.DESCRIPTION

A script used to RDP to a target Azure Windows VM using Tunneling from Azure Bastion with Azure CLI and PowerShell.
The script will do all of the following:

Remove the breaking change warning messages.
Check if Azure CLI is already installed and, if required, update it to the latest version. If Azure CLI is not installed, install it.
Change the current context to the subscription holding the Azure Bastion host.
Save the Bastion host as a variable and check if it uses the Standard SKU; otherwise, exit the script.
Update the Bastion host to enable native client support, if not already enabled.
Validate if the target VM exists, and if so, find the subscription it belongs to; otherwise, exit the script.
RDP to the target VM using the native client through Azure Bastion.
Remote Desktop File conn.rdp will be removed when the RDP connection is terminated.

.NOTES

Filename:       Connect-RDP-Azure-Windows-VM-using-native-client-via-Azure-Bastion.ps1
Created:        26/02/2023
Last modified:  06/03/2023
Author:         Wim Matthyssen
Version:        2.3
PowerShell:     Azure PowerShell
Requires:       PowerShell Az (v9.3.0)
CLI:            Azure CLI
Requires:       azure-cli 2.45.0
Action:         Change variables as needed to fit your needs.
Disclaimer:     This script is provided "as is" with no warranties.

.EXAMPLE

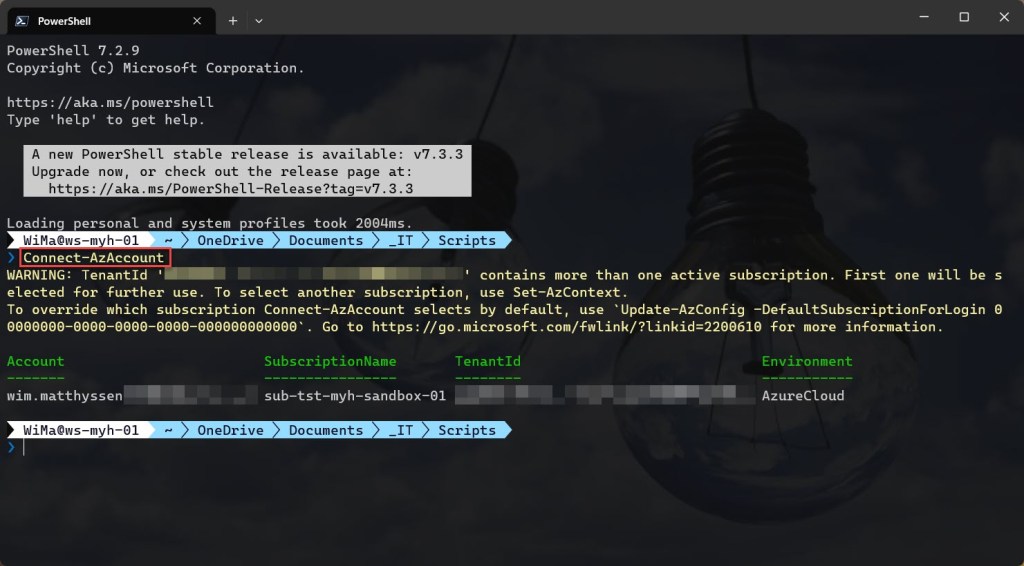

Connect-AzAccount
Get-AzTenant (if not using the default tenant)
Set-AzContext -tenantID "xxxxxxxx-xxxx-xxxx-xxxxxxxxxxxx" (if not using the default tenant)

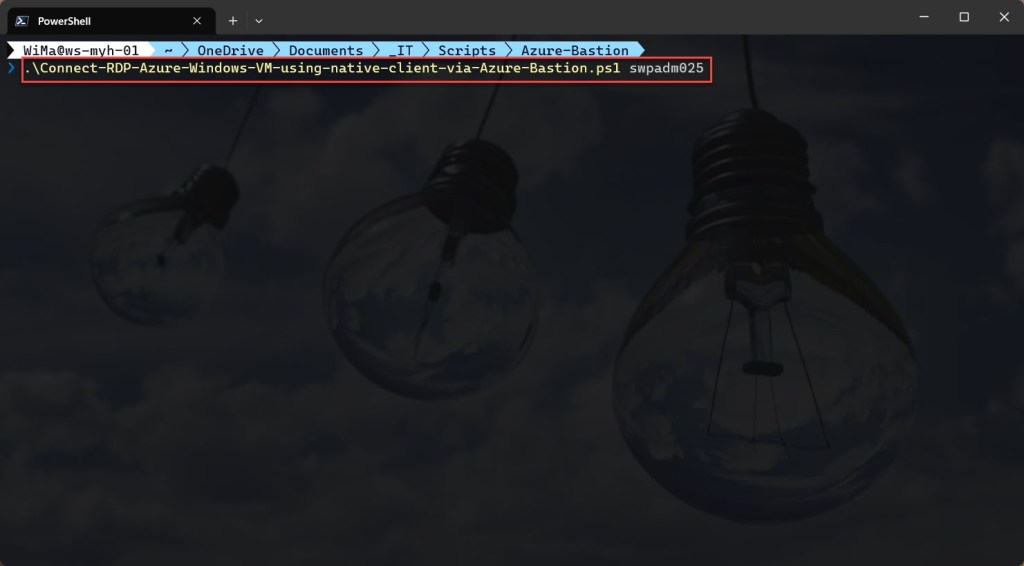

.\Connect-RDP-Azure-Windows-VM-using-native-client-via-Azure-Bastion.ps1 <"your VM name here">

-> Connect-RDP-Azure-Windows-VM-using-native-client-via-Azure-Bastion.ps1 swpadm025

.LINK

https://wmatthyssen.com/2023/02/27/connecting-to-an-azure-windows-vm-using-an-azure-powershell-script-and-native-client-via-azure-bastion/
#>

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Parameters

param(
    # $vmName -> Name of the target Azure Windows VM
    [parameter(Mandatory =$true)][ValidateNotNullOrEmpty()] [string] $vmName
)

## ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Variables

$allSubscriptions = Get-AzSubscription | Where-Object { "Enabled" -eq $_.State}
$subscriptionNameVM = ""
$vmObject = $null
$rdpFileName = "conn.rdp"

$global:currenttime= Set-PSBreakpoint -Variable currenttime -Mode Read -Action {$global:currenttime= Get-Date -UFormat "%A %m/%d/%Y %R"}
$foregroundColor1 = "Green"
$foregroundColor2 = "Yellow"
$foregroundColor3 = "Red"
$writeEmptyLine = "`n"
$writeSeperatorSpaces = " - "

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Remove the breaking change warning messages

Set-Item -Path Env:\SuppressAzurePowerShellBreakingChangeWarnings -Value $true | Out-Null
Update-AzConfig -DisplayBreakingChangeWarning $false | Out-Null

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Write script started

Write-Host ($writeEmptyLine + "# Script started. Without errors, it can take up to 19 minutes to complete" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor1 $writeEmptyLine

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Check if Azure CLI is already installed and, if required, update it to the latest version. If Azure CLI is not installed, install it

try {
    if ($null -ne (az version)) {
        Write-Host ($writeEmptyLine + "# If needed, the Azure CLI will be updated to the latest version, which can take a few minutes to complete" + $writeSeperatorSpaces + $currentTime)`
        -foregroundcolor $foregroundColor2 $writeEmptyLine
        & az upgrade --yes 2>$null
    }
} catch {
    if ($error[0].ToString() -match "The term 'az' is not recognized as a name of a cmdlet") {
        Write-Host ($writeEmptyLine + "# Azure CLI is not installed. To proceed, it will now be installed, which can take up to 2 minutes" + $writeSeperatorSpaces + $currentTime)`
        -foregroundcolor $foregroundColor2 $writeEmptyLine

        # Install Azure CLI with MSI
        $ProgressPreference = 'SilentlyContinue'; Invoke-WebRequest -Uri https://aka.ms/installazurecliwindows -OutFile .\AzureCLI.msi;
        Start-Process msiexec.exe -Wait -ArgumentList '/I AzureCLI.msi /quiet';
        Remove-Item .\AzureCLI.msi
        }
}
Finally {
    Write-Host ($writeEmptyLine + "# Azure CLI is installed and running the latest version" + $writeSeperatorSpaces + $currentTime)`
    -foregroundcolor $foregroundColor2 $writeEmptyLine
}

# Enable Azure CLI auto-upgrade
# az config set auto-upgrade.enable=yes

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

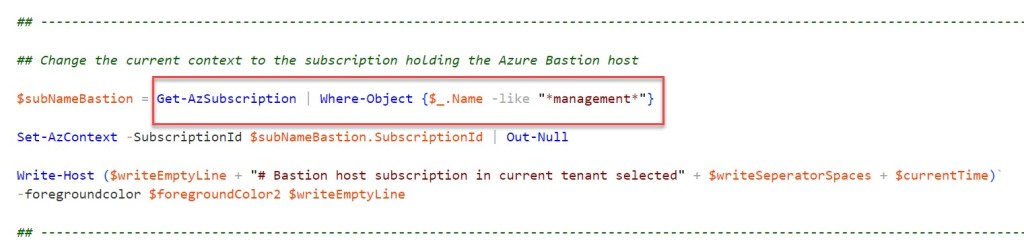

## Change the current context to the subscription holding the Azure Bastion host

# Replace <your subscription purpose name here> with purpose name of your subscription. Example: "*management*"
$subcriptionNameBastion = Get-AzSubscription | Where-Object {$_.Name -like "*management*"}

Set-AzContext -SubscriptionId $subcriptionNameBastion.SubscriptionId | Out-Null

Write-Host ($writeEmptyLine + "# Bastion host subscription in current tenant selected" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor2 $writeEmptyLine

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Save the Bastion host as a variable and check if it uses the Standard SKU; otherwise, exit the script

$bastion = Get-AzBastion

if ($bastion.SkuText.Contains("Basic")) {
    Write-Host ($writeEmptyLine + "# Bastion host runs with the Basic SKU, please upgrade to Standard SKU" + $writeSeperatorSpaces + $currentTime)`
    -foregroundcolor $foregroundColor3 $writeEmptyLine
    Start-Sleep -s 3
    Write-Host -NoNewLine ("# Press any key to exit the script ..." + $writeEmptyLine)`
    -foregroundcolor $foregroundColor1 $writeEmptyLine;
    $Host.UI.RawUI.ReadKey("NoEcho,IncludeKeyDown") | Out-Null;
    return
}

Write-Host ($writeEmptyLine + "# Bastion host variable created" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor2 $writeEmptyLine

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Update the Bastion host to enable native client support, if not already enabled

# Set Azure CLI core configuration to only show errors
az config set core.only_show_errors=yes --output none --only-show-errors

if ((az network bastion show --name $bastion.Name --resource-group $bastion.ResourceGroupName --query "enableTunneling") -ne $true)  {
    Write-Host ($writeEmptyLine + "# Native client support is not enabled. To proceed, it will now be enabled, which can take up to 6 minutes" + $writeSeperatorSpaces + $currentTime)`
    -foregroundcolor $foregroundColor2 $writeEmptyLine
    az network bastion update --name $bastion.Name --resource-group $bastion.ResourceGroupName --enable-tunneling
}

Write-Host ($writeEmptyLine + "# Bastion host has native client support enabled" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor2 $writeEmptyLine

## ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

## Validate if the target VM exists, and if so, find the subscription it belongs to; otherwise, exit the script

if ($allSubscriptions){
    foreach ($subscription in $allSubscriptions){
        Set-AzContext -Subscription $Subscription.Name | Out-Null
        $vmObject = Get-AzVM -Name $vmName
        if ($vmObject) {
            $subscriptionNameVM = $subscription.Name
            Write-Host ($writeEmptyLine + "# Target VM found in subscription $subscriptionNameVM" + $writeSeperatorSpaces + $currentTime)`
            -foregroundcolor $foregroundColor2 $writeEmptyLine
            break
        }
    }
}

if (-not $vmObject) {
    Write-Host ($writeEmptyLine + "# VM not found" + $writeSeperatorSpaces + $currentTime)`
    -foregroundcolor $foregroundColor3 $writeEmptyLine
    Start-Sleep -s 3
    Write-Host -NoNewLine ("# Press any key to exit the script ..." + $writeEmptyLine)`
    -foregroundcolor $foregroundColor1 $writeEmptyLine;
    $Host.UI.RawUI.ReadKey("NoEcho,IncludeKeyDown") | Out-Null;
    return
}

## ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

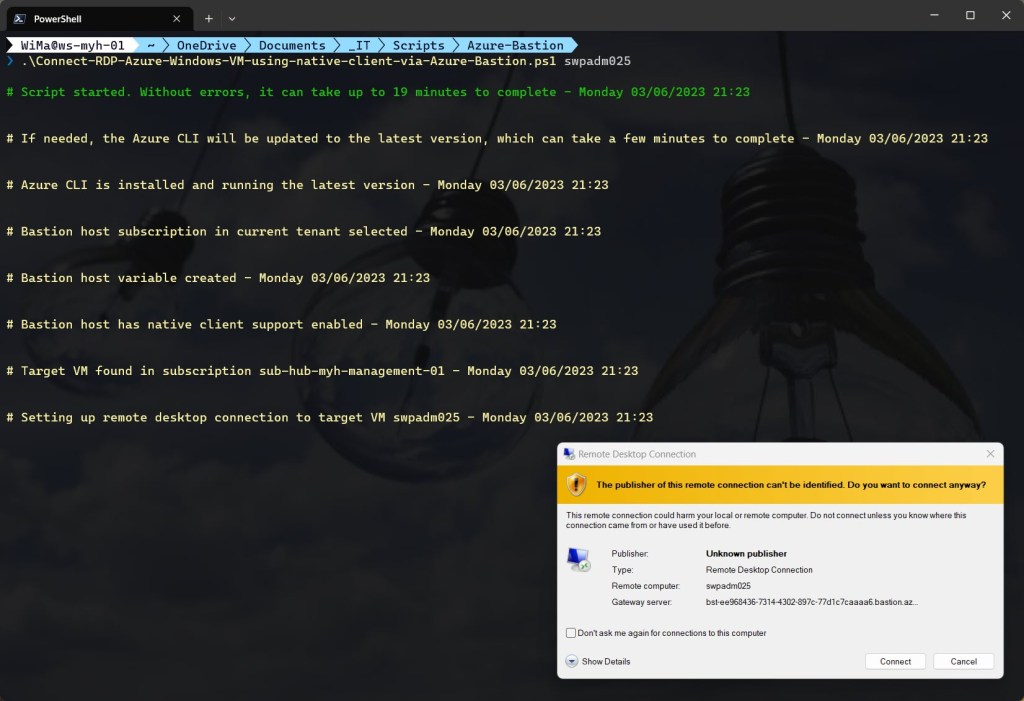

## RDP to the target VM using the native client through Azure Bastion

Write-Host ($writeEmptyLine + "# Setting up remote desktop connection to target VM $vmName" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor2 $writeEmptyLine

$vm = Get-AzVM -Name $vmName

# Azure CLI
az network bastion rdp --name $bastion.Name --resource-group $bastion.ResourceGroupName --target-resource-id $vm.Id

# Set Azure CLI core configuration only show errors to no
az config set core.only_show_errors=no --output none --only-show-errors

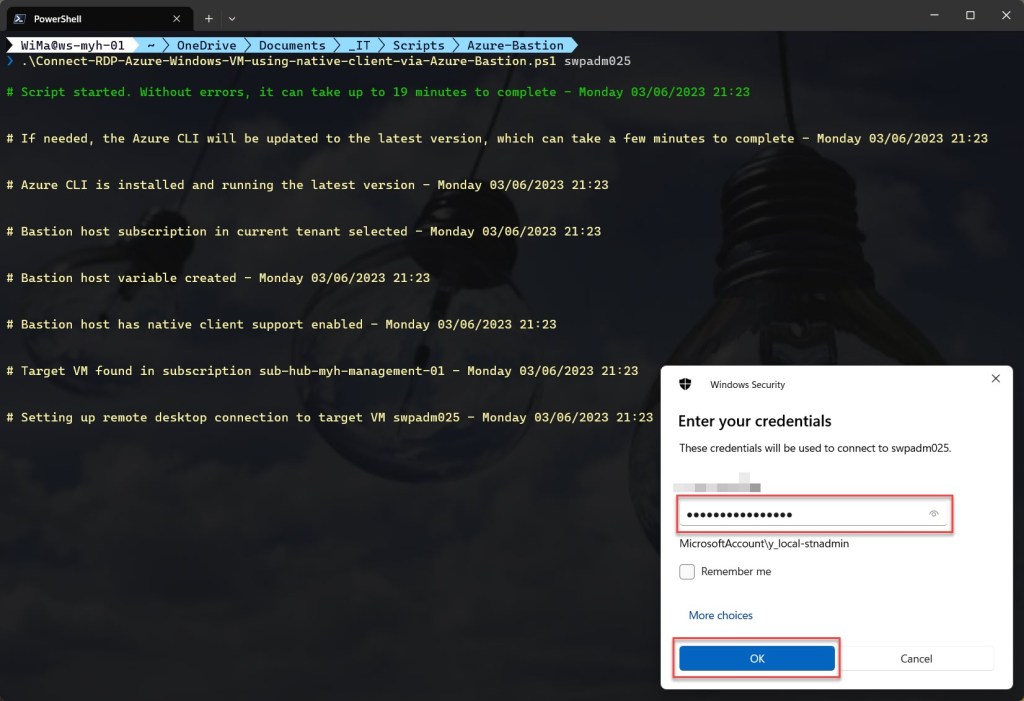

Write-Host ($writeEmptyLine + "# Please use the correct credentials to log in to the open Remote Desktop connection" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor2 $writeEmptyLine

## ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

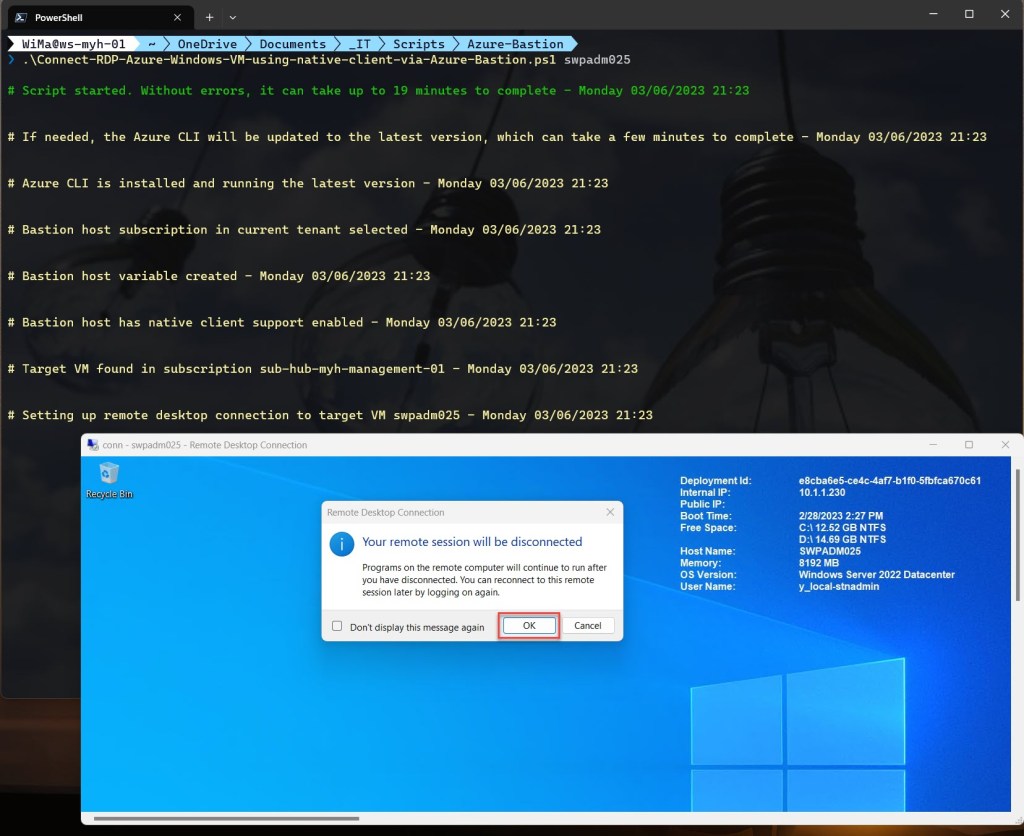

## Remote Desktop File conn.rdp will be removed when the RDP connection is terminated

Get-ChildItem | Where-Object Name -Like $rdpFileName | ForEach-Object { Remove-Item -LiteralPath $_.Name }

Write-Host ($writeEmptyLine + "# Remote Destkop File $rdpFileName removed" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor2 $writeEmptyLine

## ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

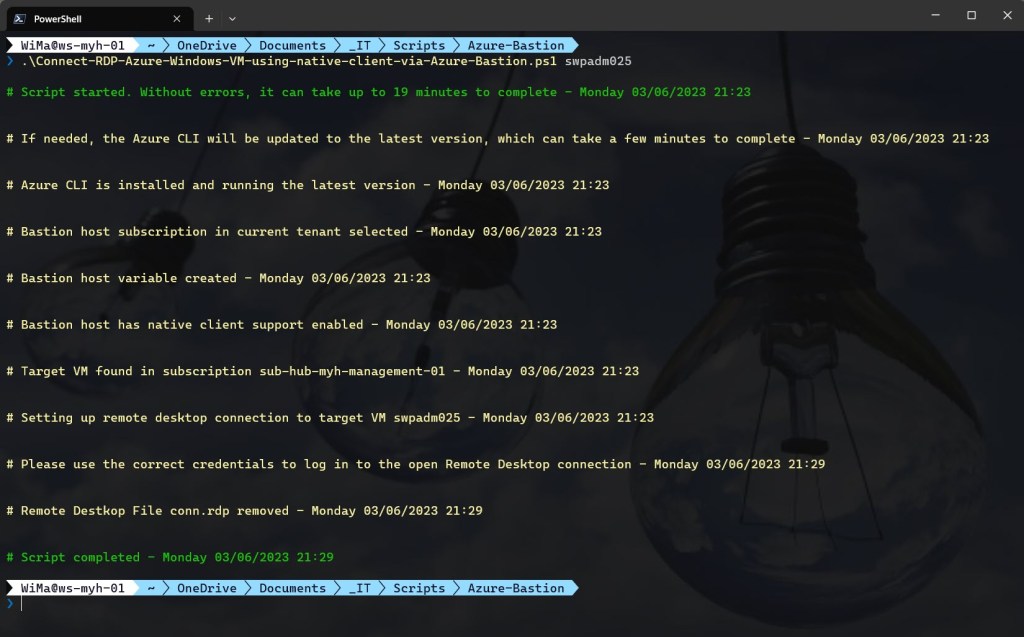

## Write script completed

Write-Host ($writeEmptyLine + "# Script completed" + $writeSeperatorSpaces + $currentTime)`
-foregroundcolor $foregroundColor1 $writeEmptyLine

## ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
